GPS Land Measuring Instrument Mountain Area Measurement GPS Land Survey Equipment
Round-trip machine load:
1. At the Round-trip machine load in parameter setting,press the [▲/▼]button to set the width.
2. After setting is completed,press the to return main interface.
3. Press the [▲/▼]button switch function to Round-trip machine load"in the main interface.
4. Press [Start] button at the starting point to start the measurement at the beginning of the work.Press the [Stop] button to pause measurement
and view data after agricultural machinery work is completed;If the measurement is not completed,press the [Start] button again to continue
the measurement. If the measurement is completed,press power button to save the data.
Circle machine load measurement:
1. Circle machine load measurement function is used to measure area around the land, set the position of the land meter in the vehicle and the
nearest distance of the ground boundary, and then measure the boundary around the region.Then measuring around the boundary of the land.
2. At the Circle machine load in parameter setting, press the [▲/▼]button to set the edge distance.
3. After setting is completed, press the to return main interface.
4. Press the [▲/▼]button switch function to Circle machine load"in the main interface.
5. In the main interface, press the[ Start] button to measure at starting point.
6. After a circle around the land under test, press the[ Stop ] button to end measurement and view data press power button to save data.
| Functions | S4 |
| Positioning accuracy | 2.5m |
| Initial barometric calibration | √ |
| Normal area measurement | √ |
| Mountain area measurement | √ |
| Intell. Slope measurement | √ |
| Fixed point measurement | √ |
| Fixed width area measurement | √ |
| Normal distance measurement | √ |
| Manual distance measurement | √ |
| Altitude display | √ |
| Altitude measurement | √ |
| Track display | √ |
| Mu setting | √ |
| Unit setting | √ |
| Time display | √ |
| Data statistics | √ |
| Historical record | √ |
| Lighting /Currency detection | √ |
| Dry battery | √ |
| lithium battery | √ |
| Data storage | 200 |
| Voice broadcast | √ |
| Data export | √ |
Product Tags:
|
|

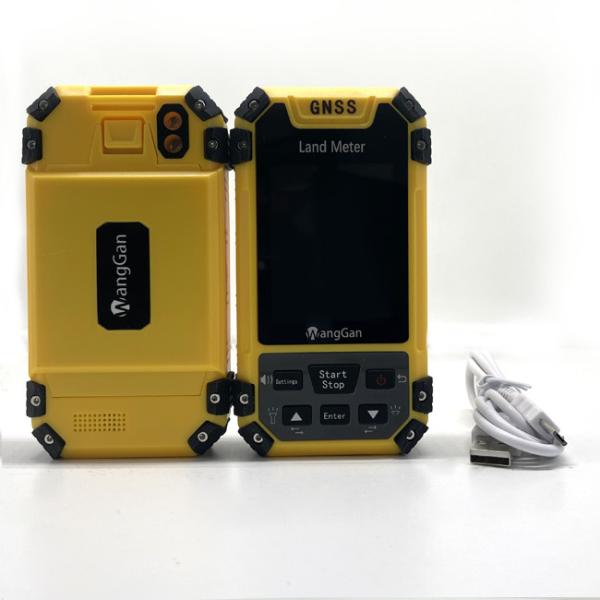

GPS Land Measuring Instrument for Mountain Area Measurement Images
|
